Early Adopter Program

Skybotix launched an Early Adopter Program for its VI Sensor. This program addresses research groups around the world that are eager to get their hands on the VI sensor technology early and are willing to help us with their feedback to make our market-ready technology into a really great and easy-to-use hardware platform.

DSC09698-edited-resized

It's all about Support

By joining the Early Adopter Program, you get the latest tested VI sensor hardware including drivers and example applications. During the program and by the help of your feedback, Skybotix will constantly improve the driver software as well as move more steps of the computer vision pipeline to the embedded system and eventually to the FPGA. Until the end of the program, you will get all of these software updates for free. In addition, we will support you in getting started with the sensor and the integration into your system.

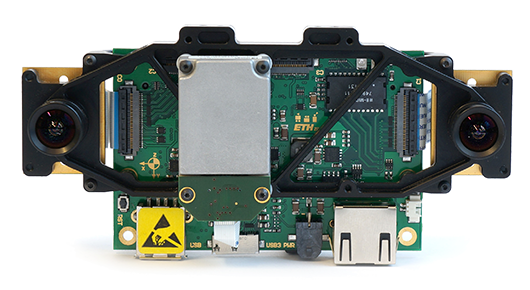

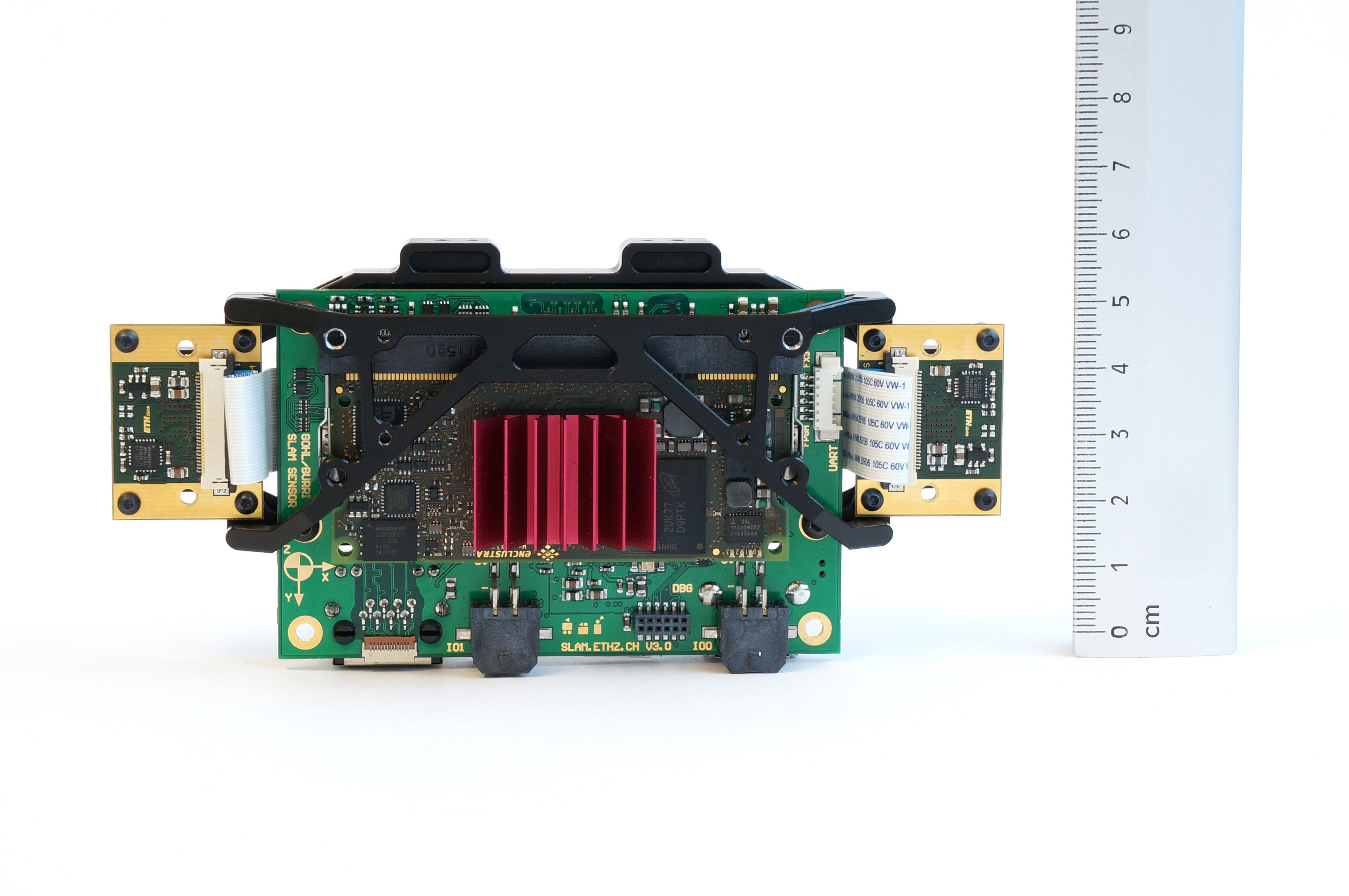

Early Adopter VI Sensor Features

  • 2 HDR global shutter cameras (Aptina MT9V034)
  • Xilinx Zynq 7020 SoC module
    • Dual ARM Cortex™-A9 MPCore running Linux
    • Artix™-7 FPGA
  • IMU Analog Devices ADIS16448
  • Image and IMU data stream synchronized & timestamped on FPGA
  • Embedded image processing on FPGA*
  • Gigabit Ethernet
  • USB 2.0 / USB 3.0*
  • Mass: 130g
  • Dimensions: 130 x 30 x 65mm
  • Linux driver (ROS enabled)

(*) available at a later stage through updates

View Factsheet

Early Adopter Package

The Early Adopter Package includes:

  • VI-Sensor (factory calibrated: intrinsic, spatial & temporal inter-sensor)
  • Linux driver (ROS enabled)
  • SDK with example code for working with image and IMU data in openCV and/or ROS
  • Ready for stereo visual odometry framework VISO2
  • USB 3.0 and RJ45 cable
  • Power supply cable kit
  • Access to the Wiki page
  • Driver and firmware updates
  • VI-Sensor protection case

Price: EUR 3’900

Shipping & VAT excluded. Offered prices are lower than final list prices and exclusively for Early Adopter Program applicants.

Product and program specifications are subject to change. The program is open to research institues only and non-commercial use only. For commercial use, please contact us directly.

Apply for an Early Adopter Package now and get the chance to be one of the first to try it out.

Please provide us with some information about the intended application to help us design a better product. We thank all applicants for their kind support.
