This product has been discontinued.
Small, safe & programmable

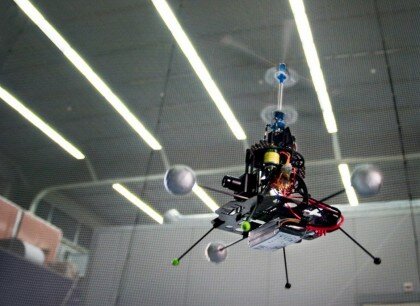

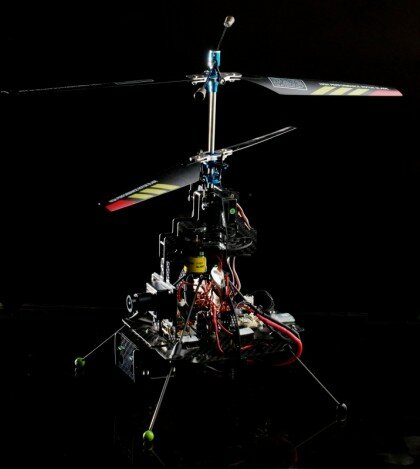

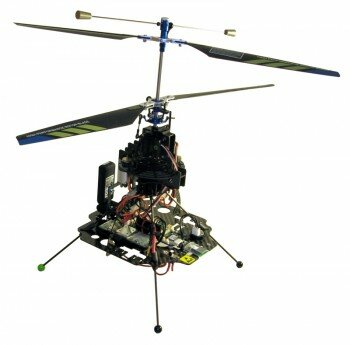

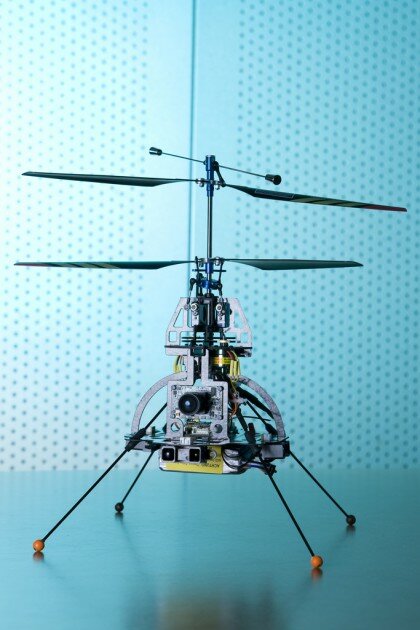

CoaX is the first product of Skybotix designed for the research and education markets. It is a unique robotic coaxial helicopter equipped with state of the art sensors and processors. The helicopter is equipped with two brushless motors for the main rotors and two servo motors for the swashplate-based steering.
The CoaX contains an integrated Inertial Measurement Unit (IMU), a pressure sensor, a down-looking sonar, three side looking sonar and a color camera. To communicate with the world, the robot has a Bluetooth (or ZigBee) module and a optional WiFi module. It can also be controlled via a 2.4GHz remote control. The CoaX contains two DSPs (dsPIC33). One is used for sensor data-fusion and the second one for control and communication. Additionally, the CoaX supports the Overo series of tiny computers from Gumstix (optional).
CoaX Pack comes ready to fly out of the box with a set of attitude and altitude control functions. One can also control the system through an open-source API (included) to give high-level commands for taking-off, landing or any other type of motion. The users can simulate their algorithms on the provided ODE or Simulink simulators, and use exactly the same code to control the real helicopter.
CoaX Packages

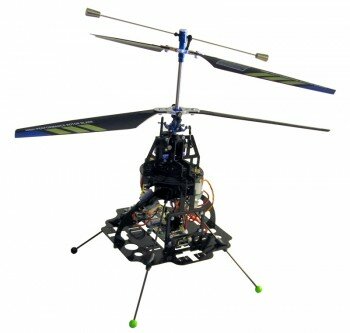

– Complete CoaX helicopter with its:
- carbon structure,
– motors and servo motors, motor controllers,
– swash-plate, rotors,
– coax board,
– down-looking sonar,
– Bluetooth module (default).
– Battery
– Remote control
– Cable for remote control
– 2x replacement legs
– 1 kit of replacement blades (2x up & 2x down)
– Cable – lab power-supply to CoaX
– Programming board
– Safety instructions!
CHF 4400.-
- Coax-Basic
Additionally Coax-Pack contains:
– Gumstix board
- Overo Earth Strom
– 4Gb micro SD card (default)
– Micro SD card reader
– Camera – Targus micro Webcam (default)
– WiFi module – External N standard module
CHF 4850.-
- Coax-Basic
Additionally Coax-Eye contains:
– CoaX Speed Control Module
- optical speed module (for indoor hovering and X,Y speed control)

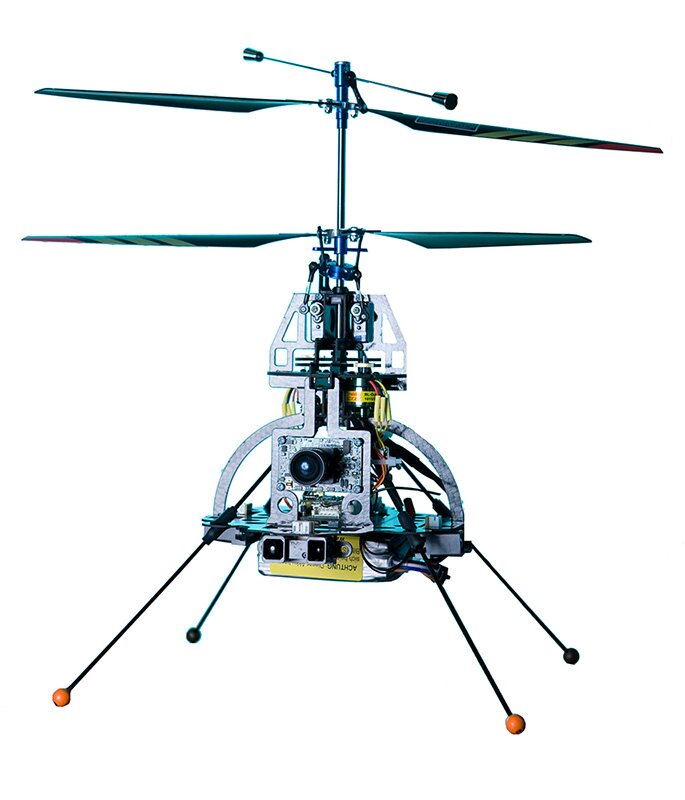

– CoaX Wireless Cam Kit
- high quality CCD camera
– video goggles with 5.8GHz receiver
– wireless transmitter 5.8GHz
CHF 5490.-
Available CoaX Modules

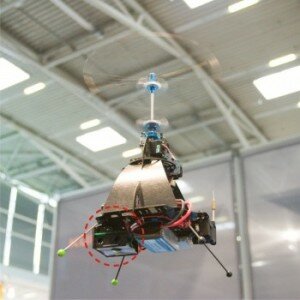

– Optical speed module – for indoor hovering and X,Y speed control
- Optical speed sensor
– 4x light controlled power LEDs
– Robust carbon casing
– Cable – to connect to the CoaX helicopter
CHF 495.-

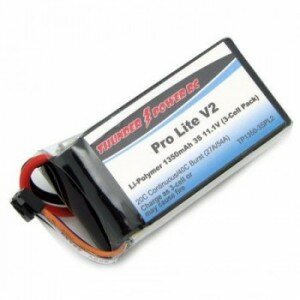

– Additional battery pack
CHF 85.-

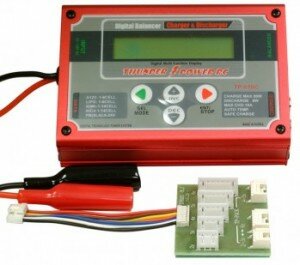

– Battery charger with balancer
– Cable – charger to battery pack
CHF 185.-

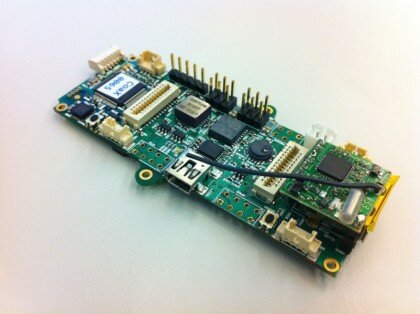

– CoaX Board
– CoaX Programming board
– Cable – Lab power supply to CoaX board
CHF 2985.-

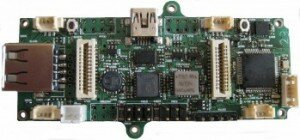

– Gumstix board – Overo Earth (default)
– Camera – Targus micro Webcam (default)
– WiFi module – External N standard module
CHF 510.-

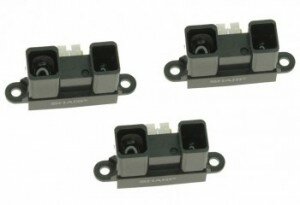

– Range finder – 3x Sharp IR range finders (120cm max)
– Cable – connected to the Sharp sensors for easy interfacing with the CoaX Board
CHF 185.-

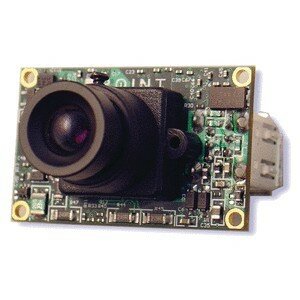

– Research grade camera (B/W)
– Fisheye lens (150°) – S-mount lens holder
– USB adapter
CHF 475.-

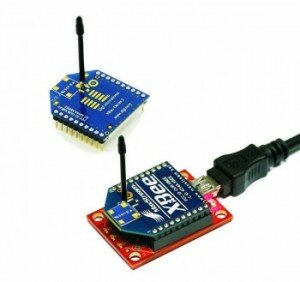

– 1x ZigBee wireless module (X-bee module), configured as “End Device”, mounted on a PCB adapter with a cable, ready to plug on the serial port of the CoaX Board.
– 1x ZigBee wireless module (X-bee module), configured as “Coordinator”, mounted on a USB to serial base unit. Ready to plug into the computer.
CHF 185.-
– Additional programming board, compatible with Microchip ICD2 programmer. The CoaX programming board offers also an RS232 serial connection to the CoaX Board.
CHF 85.-
